Sao Paulo Metrosu Haritası : 1974 yılında işletmeye açılan San Paulo Metrosu 6 hatta ve bir de monoray hattına sahip olan dev bir demiryolu ağı. Bu hatların içinde 2014 yılında açılan Amerika’nın en büyük monoray sistemi olan São Paulo Monorayı Brezilya’nın San Paulo şehrinde 80 km/saat ticari işletme hızında hizmet vermektedir. Sürücüsüz olan araçlar Bombardier firmasına ait olup Bombardier Innovia Monorail 300 araçları kullanılmaktadır.
7,6 km uzuluğundaki havaray sistemine 27 km ek yapılması planlanıyor. Proje tamamlandığında toplamda 17 istasyonla hizmet verecek sistemi Companhia do Metropolitano de São Paulo firması işletiyor. Tüm İstasyon ve monoray hattı yüksek viyadüklerde çalışan bu sistem 2021 yılına kadar tamamen tamamlanmış olacak.
Sao Paulo Metro Hatları
| Hat | Renk | Hat Adı | Açılış | Uzunluk | İstasyon | Seyehat (min) | Çalışma Saati |
|---|---|---|---|---|---|---|---|
| Hat 1 | Blue | Tucuruvi ↔ Jabaquara | 1974 | 20.2 km | 23 | 39 | Her gün (4:40 AM–0:32 AM) |
| Hat 2 | Green | Vila Madalena ↔ Vila Prudente | 1991 | 14.7 km | 14 | 26 | Her gün (4:40 AM–0:32 AM) |
| Hat 3 | Red | Palmeiras-Barra Funda ↔ Corinthians-Itaquera | 1979 | 22.0 km | 18 | 34 | Her gün (4:40 AM–0:32 AM) |
| Hat 4 | Yellow | São Paulo-Morumbi ↔ Luz | 2010 | 11.4 km | 10 | 19 | Her gün (4:40 AM–0:32 AM) |
| Hat 5 | Lillac | Capão Redondo ↔ Chácara Klabin | 2002 | 19.9 km | 17 | 35 | Her gün (4:40 AM–0:32 AM) |
| Hat 15 | Red | Vila Prudente ↔ Jardim Planalto | 2014 | 8.9 km | 7 | 12 | Her gün (4:40 AM–0:32 AM) |
Hat 1 Tucuruvi Jabaquara İstasyonları
| Kod | İstasyon | Platform | Pozisyon | Bağlantı | Yer |
|---|---|---|---|---|---|
| TUC | Tucuruvi | Side platforms | Partially Underground | – | Tucuruvi |
| PIG | Parada Inglesa | Side platforms | Elevated | Urban Bus Terminal | Tucuruvi |
| JPA | Jardim São Paulo-Ayrton Senna | Island platforms | Underground | – | Santana |
| SAN | Santana | Side platforms | Elevated | Urban Bus Terminal | Santana |
| CDU | Carandiru | Side platforms | Elevated | – | Santana |
| TTE | Portuguesa-Tietê | Side platforms | Elevated | Long Distance Bus Terminal | Santana |
| PPQ | Armênia | Side platforms | Elevated | Urban Bus Terminal | Bom Retiro |
| TRD | Tiradentes | Island platforms | Underground | – | Bom Retiro |
| LUZ | Luz | Side platforms and Island platforms | Underground | Line 4 – Yellow CPTM lines: Line 7 – Ruby and Line 11 – Coral |
Bom Retiro |
| BTO | São Bento | Superimposed | Underground | Line 19 – Sky Blue (future) | Sé |
| PSE | Sé | Side platforms and Island platforms | Underground | Line 3 – Red | Sé |
| LIB | Japão-Liberdade | Side platforms | Underground | – | Sé |
| JQM | São Joaquim | Side platforms | Underground | Line 6 – Orange (future) | Liberdade |
| VGO | Vergueiro | Side platforms | Underground | – | Liberdade |
| PSO | Paraíso | Superimposed | Underground | Line 2 – Green | Vila Mariana |
| ANR | Ana Rosa | Island platforms | Underground | Line 2 – Green Urban Bus Terminal |
Vila Mariana |
| VMN | Vila Mariana | Side platforms | Underground | Urban Bus Terminal | Vila Mariana |
| SCZ | Santa Cruz | Side platforms | Underground | Line 5 – Lilac Santa Cruz Shopping Mall |
Vila Mariana |
| ARV | Praça da Árvore | Side platforms | Underground | – | Saúde |
| SAU | Saúde | Side platforms | Underground | – | Saúde |
| JUD | São Judas | Side platforms | Underground | Line 17 – Gold (future) | Saúde |
| CON | Conceição | Side platforms | Underground | – | Jabaquara |
| JAB | Jabaquara | Side platforms | Underground | Line 17 – Gold (future) Long Distance Urban Bus Terminal |
Jabaquara |
Hat 2 Vila Madalena Vila Prudente İstasyonları
| Kod | İstasyon | Platform | Pozisyon | Bağlantı | Yer |
|---|---|---|---|---|---|
| VMD | Vila Madalena | Side platforms | Underground | Vila Madalena Bus Terminal | Between Pinheiros and Perdizes |
| SUM | Santuário Nossa Senhora de Fátima-Sumaré | Side platforms | Elevated | – | Between Perdizes and Jardim Paulista |
| CLI | Clínicas | Side platforms | Underground | – | Between Consolação and Jardim Paulista |
| CNS | Consolação | Island platforms | Underground | Line 4 | Between Consolação and Jardim Paulista |
| TRI | Trianon-Masp | Island platforms | Underground | – | Between Bela Vista and Jardim Paulista) |
| BGD | Brigadeiro | Island platforms | Underground | – | Between Bela Vista and Vila Mariana |
| PSO | Paraíso | Split platforms | Underground | Line 1 | Vila Mariana |
| ANR | Ana Rosa | Island platforms | Underground | Line 1 Ana Rosa Bus Terminal |
Vila Mariana |
| CKB | Chácara Klabin | Island platforms | Underground | Line 5 | Vila Mariana |
| IMG | Santos-Imigrantes | Island platforms | Elevated | – | Cursino |
| AIP | Alto do Ipiranga | Side platforms | Underground | – | Ipiranga |
| SAC | Sacomã | Side platforms | Partially underground | Sacomã Bus Terminal Expresso Tiradentes |
Ipiranga |
| TTI | Tamanduateí | Side platforms | Elevated | Line 10 | Between Ipiranga and Vila Prudente |
| VPT | Vila Prudente | Side platforms | Underground | Line 15 Vila Prudente Bus Terminal Expresso Tiradentes |
Vila Prudente |
| TBA | Orfanato | Side platforms | Underground | – | Vila Prudente |
| TBA | Água Rasa | Side platforms | Underground | Água Rasa Bus Terminal | Água Rasa |
| TBA | Anália Franco | Side platforms | Underground | Line 16 | Água Rasa |
| TBA | Vila Formosa | Side platforms | Underground | Vila Formosa Bus Terminal | Vila Formosa |
| TBA | Guilherme Giorgi | Side platforms | Underground | – | Carrão |
| TBA | Nova Manchester | Side platforms | Underground | – | Carrão |
| TBA | Aricanduva | Side platforms | Underground | – | Vila Matilde |
| PEN | Penha | Side platforms | Underground | Line 3 Line 11 |
Penha |
| TBA | Penha de França | Side platforms | Underground | – | Penha |
| TBA | Tiquatira | Side platforms | Underground | Lines 12 and 13 Tiquatira Bus Terminal São Paulo-Guarulhos Bus Corridor |
Penha |
| TBA | Paulo Freire | Side platforms | Underground | – | Vila Maria |
| TBA | Ponte Grande | Side platforms | Underground | São Paulo-Guarulhos Bus Corridor | Ponte Grande |
| TBA | Dutra | Side platforms | Underground | Line 19 | Itapegica |
Hat 3 Palmeiras-Barra Funda Corinthians-Itaquera İstasyonları
| Kod | İstasyon | Platform | Pozisyon | Bağlantı | Yer |
|---|---|---|---|---|---|
| BFU | Palmeiras-Barra Funda | Side platforms and Island platforms | At grade | Long Distance and Urban Bus terminal, CPTM Lines: Line 7 (Ruby) and Line 8 (Diamond) |
Barra Funda |
| DED | Marechal Deodoro | Superimposed | Underground | None | Santa Cecília |
| CEC | Santa Cecília | Side platforms | Underground | Urban Bus Terminal (Amaral Gurgel) of SPTrans | Santa Cecília |
| REP | República | Side platforms and Island platforms | Underground | Line 4 (Yellow) | República |
| GBU | Anhangabaú | Island platforms | Underground | Urban Bus Terminal (Terminal Bandeira) of SPTrans | República and Sé |
| PSE | Sé | Side platforms and Island platforms | Underground | Line 1 (Blue) | Sé |
| PDS | Pedro II | Side platforms | Elevated | Expresso Tiradentes | Sé |
| BAS | Brás | Side platforms and Island platforms | Elevated | CPTM lines: Line 10 (Turquoise), Line 11 (Coral), and Line 12 (Sapphire) | Brás |
| BRE | Bresser-Mooca | Island platforms | At grade | None | Brás |
| BEL | Belém | Island platforms | At grade | None | Belém |
| TAT | Tatuapé | Side platforms and Island platforms | At grade | Tatuapé Shopping Mall, Boulevard Tatuapé Shopping Mall CPTM Lines: Line 11 (Coral) and Line 12 (Sapphire) and Urban Bus Terminal |
Tatuapé |
| CAR | Carrão | Island platforms | At grade | Urban Bus Terminal | Tatuapé |
| PEN | Penha | Island platforms | Partially Underground | Urban Bus Terminal | Penha |
| VTD | Vila Matilde | Island platforms | At grade | Urban Bus Terminal | Vila Matilde |
| VPA | Guilhermina-Esperança | Island platforms | At grade | Bicycle parking | Vila Matilde |
| PCA | Patriarca-Vila Ré | Island platforms | Elevated | Urban Bus Terminal | Penha |
| ART | Artur Alvim | Island platforms | At grade | Urban Bus Terminal | Artur Alvim |
| ITQ | Corinthians-Itaquera | Side platforms and Island platforms | Elevated | CPTM: Line 11 (Coral) and Urban Bus Terminal | Itaquera |
Hat 4 São Paulo-Morumbi Luz İstasyonları
| Kod | İstasyon | Platform | Pozisyon | Bağlantı | Yer | Açılış | |
|---|---|---|---|---|---|---|---|
| LUZ | Luz | Side platforms | Underground | 1 7 11 | Bom Retiro | 2011 | |
| REP | República | Side platforms | Underground | 3 | República | 2011 | |
| HIG | Higienopólis-Mackenzie | Side platforms | Underground | Future access to 6 | Consolação | 2018 | |
| PTA | Paulista | Side platforms | Underground | 2 | Consolação | 2010 | |
| FRE | Oscar Freire | Side platforms | Underground | Jardim Paulista | 2018 | ||
| FRA | Fradique Coutinho | Side platforms | Underground | Pinheiros | 2014 | ||
| FAL | Faria Lima | Side platforms | Underground | Bus Terminal | Pinheiros | 2010 | |
| PIN | Pinheiros | Side platforms | Underground | 9 | Pinheiros | 2011 | |
| BUT | Butantã | Side platforms | Underground | Urban bus terminal | Butantã | 2011 | |
| MBI | São Paulo-Morumbi | Side platforms | Underground | Future access to 17 , Urban bus terminal | Morumbi | 2018 |
Hat 5 Capão Redondo Chácara Klabin İstasyonları
| Kod | İstasyon | Platform | Pozisyon | Bağlantı | Yer | Açılış |
|---|---|---|---|---|---|---|
| CPR | Capão Redondo | Side platforms | Elevated | EMTU and SPTrans | Capão Redondo | 2002 |
| CPL | Campo Limpo | Side platforms | Elevated | EMTU | Campo Limpo | 2002 |
| VBE | Vila das Belezas | Side platforms | Elevated | Vila Andrade | 2002 | |
| GGR | Giovanni Gronchi | Side platforms | Elevated | João Dias Terminal of SPTrans | Vila Andrade | 2002 |
| STA | Santo Amaro | Side platforms | Elevated | Guido Caloi Terminal of SPTrans and Line 9 (Emerald) of CPTM | Santo Amaro | 2002 |
| LTR | Largo Treze | Side platforms | Underground | Santo Amaro Terminal of SPTrans | Santo Amaro | 2002 |
| APN | Adolfo Pinheiro | Side platforms | Underground | Diadema-Morumbi Corridor of EMTU | Santo Amaro | 2014 |
| ABV | Alto da Boa Vista | Island platforms | Underground | Santo Amaro | 2017 | |
| BGA | Borba Gato | Island platforms | Underground | Santo Amaro | 2017 | |
| BRK | Brooklin | Island platforms | Underground | Diadema-Morumbi corridor of EMTU | Campo Belo | 2017 |
| CPB | Campo Belo | Island platforms | Underground | Line 17 (Gold) of ViaMobilidade | Campo Belo | 2019 |
| ECT | Eucaliptos | Side platforms | Underground | Moema | 2018 | |
| MOE | Moema | Side platforms | Underground | Moema | 2018 | |
| SER | AACD-Servidor | Side platforms | Underground | Moema | 2018 | |
| HSP | Hospital São Paulo | Side platforms | Underground | Vila Mariana | 2018 | |
| SCZ | Santa Cruz | Side platforms | Underground | Line 1 (Blue) of Metro | Vila Mariana | 2018 |
| CKB | Chácara Klabin | Side platforms | Underground | Line 2 (Green) of Metro | Vila Mariana | 2018 |
Hat 15 San Paulo Monoray İstasyonları
- Vila Prudente
- Oratório
- São Lucas
- Camilo Haddad
- Vila Tolstói
- Vila União
- Jardim Planalto
Yapım Aşamasında olan İstasyonlar
- Sapopemba
- Fazenda da Juta
- São Mateus
- Jardim Colonial

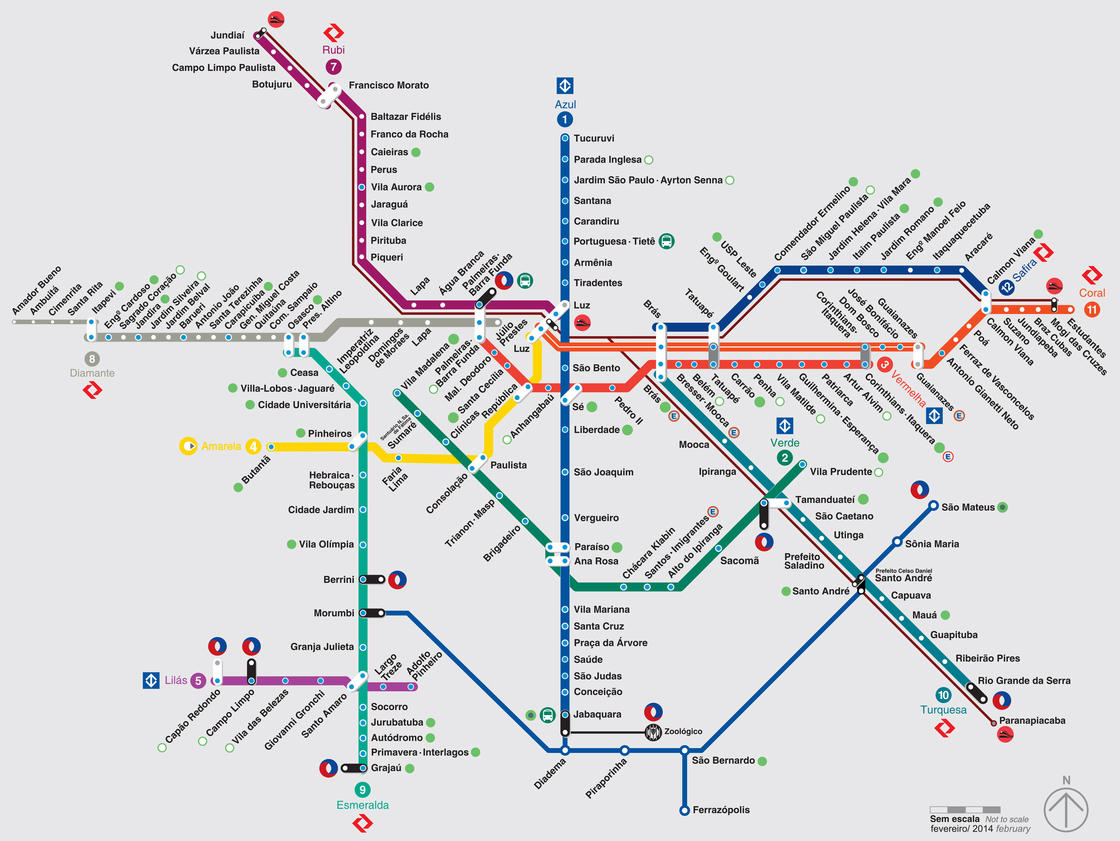

San Paulo Metro ve Monoray Haritası
